PRODUCT DESCRIPTION:
No-Wrench Screw Anchors may be installed by hand or machine. The thimble eye or triple eye on the rod has a large opening to admit a turning bar for screwing the anchor down. The eye will also fit into an adapter available from most hole-boring machine manufacturers so the anchor may be power installed. The No-Wrench Screw Anchor consists of a drop-forged steel thimble eye or Triple eye rod welded to a steel helix. The entire anchor is hot-dip galvanized for long resistance to rust.
• No-Wrench Screw Anchors may be installed by hand or machine
• Hot dipped galvanized per ASTM A153
• No-Wrench Screw Anchors can be installed to a greater depth to reach a firmer soil by using an extension rod
The No-Wrench Triple Eye Screw Anchor is a high-quality, versatile earth anchor. The anchor is made from high-strength forged steel, ensuring it can withstand significant loads and environmental stressors.

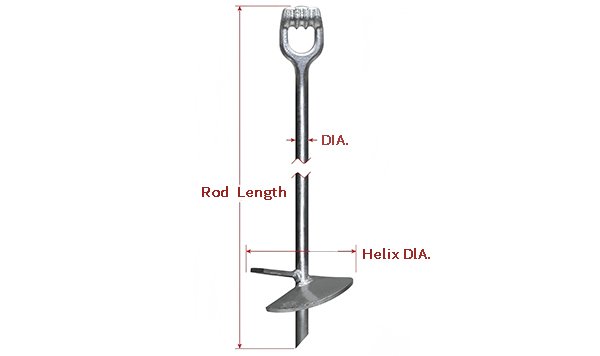

| Size | Helix OD (inch) | Length (inch) | Rod OD (inch） | Holding capacities (See soil classifications) |
| Helix8-66 | 8” | 66” | 1” | Class 5: 11,000lbs |
| Class 6: 9000lbs | ||||
| Class7: 6000lbs | ||||
| Helix 4-54 | 4” | 54” | 3/4” | Class 5: 4500lbs |
| Class 6: 3000lbs | ||||
| Class7: 1500lbs | ||||
| Helix6-66 | 6” | 66” | 3/4” | Class 5: 6500lbs |
| Class 6: 5000lbs | ||||
| Class7: 2500lbs | ||||
| Helix10-66 | 10” | 66” | 1-1/4” | Class 5: 13,000lbs |
| Class 6: 10000lbs | ||||
| Class7: 7000lbs | ||||
| Helix 10-96 | 10” | 96” | 1-1/4” | Class 5: 13,000lbs |
| Class 6: 10000lbs | ||||
| Class7: 7000lbs |
