PRODUCT DESCRIPTION:
US-type screw pin chain shackle 210 aka screw pin d shackle or dee shackle, features its “D” shape, the shackle’s body is made from high tensile carbon steel(C1045), and the shackle pin is premium quality alloy steel(40Cr), generally meet to US Fed. Spec.RR C 271 & ASME B30 26.
• Material: Body Carbon Steel C1045(#45)/Pin Alloy Steel
• Surface: Electric Galvanized/Hot Dipped Galvanized
• W.L.L: From 1/2 Tons to 55 Tons
• Size: Various Shackle sizes available from 3/16″ to 2 1/2″
• Standard: U.S. Federal Specification RR-C-271D / ASME B30.26
• Safety Factor: 6:1 or 4:1
• Brand: Unbranded/OEM
• Application: Overhead Lifting, Lashing, Towing

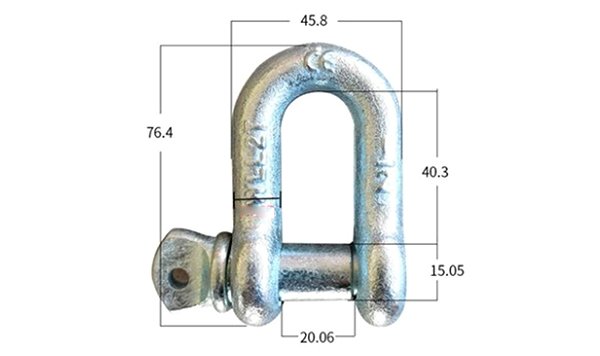

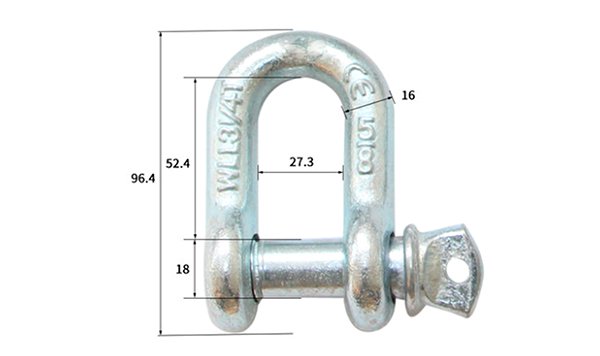

| Size(in.) | Working Load(t) | Weight(Ibs) | Dimensions(in.) | ||||||
| - | - | - | A | B | C | D | E | F | M |
| 1/2 | 1/2 | 0.11 | 0.47 | 0.31 | 0.97 | 0.25 | 0.97 | 0.62 | 1.43 |
| 5/16 | 3/4 | 0.17 | 0.53 | 0.38 | 1.07 | 0.31 | 1.15 | 0.75 | 1.71 |
| 3/8 | 1 | 0.28 | 0.66 | 0.44 | 1.28 | 0.38 | 1.42 | 0.92 | 2.02 |
| 7/16 | 1-1/2 | 0.43 | 0.75 | 0.5 | 1.48 | 0.44 | 1.63 | 1.06 | 2.37 |
| 1/2 | 2 | 0.59 | 0.81 | 0.63 | 1.66 | 0.5 | 1.81 | 1.18 | 2.69 |
| 5/8 | 3-1/4 | 1.25 | 1.06 | 0.75 | 2.04 | 0.63 | 2.32 | 1.5 | 3.34 |
| 3/4 | 4-3/4 | 2.63 | 1.25 | 0.88 | 2.4 | 0.75 | 2.75 | 1.81 | 3.97 |
| 7/8 | 6-1/2 | 3.16 | 1.44 | 1 | 2.86 | 0.88 | 3.2 | 2.1 | 4.5 |
| 1 | 8-1/2 | 4.75 | 1.69 | 1.13 | 3.24 | 1 | 3.69 | 2.38 | 5.13 |
| 1-1/8 | 9-1/2 | 6.75 | 1.81 | 1.25 | 3.61 | 1.13 | 4.07 | 2.69 | 5.71 |
| 1-1/4 | 12 | 9.06 | 2.03 | 1.38 | 3.97 | 1.25 | 4.53 | 3 | 6.25 |
| 1-3/8 | 13-1/2 | 11.63 | 2.25 | 1.5 | 4.43 | 1.38 | 5.01 | 3.31 | 6.53 |
| 1-1/2 | 17 | 15.95 | 2.38 | 1.63 | 4.87 | 1.5 | 5.38 | 3.62 | 7.33 |
| 1-3/4 | 25 | 26.75 | 2.88 | 2 | 5.78 | 1.75 | 6.38 | 4.19 | 9.06 |
| 2 | 35 | 42.31 | 3.25 | 2.25 | 6.77 | 2.1 | 7.25 | 5 | 10.35 |
| 2-1/2 | 55 | 71.75 | 4.12 | 2.75 | 8.07 | 2.63 | 9.38 | 5.68 | 13 |
