Steamboat Ratchet Binder w/ Pelican Hooks – 24″ Barrel – 1-3/8″ Screw Diam

This high-quality Steamboat Ratchet Binder is equipped with durable Pelican Hooks and features a 24-inch barrel with a 1-3/8-inch screw diameter, designed for heavy-duty load securing. The Pelican Hooks provide added convenience and security, making it easy to attach and release loads.

Features

• High strength alloy steel

• 24" barrel - 1-3/8" screw diameter

• Take-up: 22"

• Handle length: 21"

• Working load limit: 30,000 lbs

• Proof load limit: 60,000 lbs

• Closed-open measurements: 42-64"

• Eye hole dia/throat opening: 1-7/16"

• Minimum breaking strength: 90,000 lbs

• Weight: 58 lbs

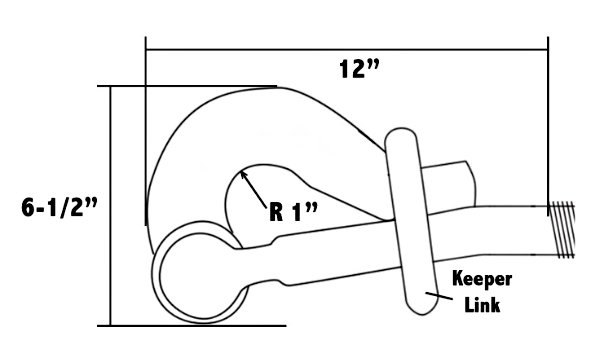

PRODUCT DRAWING DETAILS

Detail chart

PRODUCT DRAWING DETAILS
